Name: 5-String 3+2 Bass Ratio Y-Style Button Machine Heads, Black
SKU: PRB-5320-B0

Brand: Graph Tech Guitar

Model: PRB-5320-B0

UPC: 702725244904

Products Variants:

5 String 3+2 Bass Ratio Y-style Button Machine Heads, Chrome

4 String 2+2 F-style Bass Ratio Machine Heads, Chrome

4 String 4-In-Line Bass Ratio Open Back Classic Clover Leaf Button Lefty, Chrome

Please log in to see your price

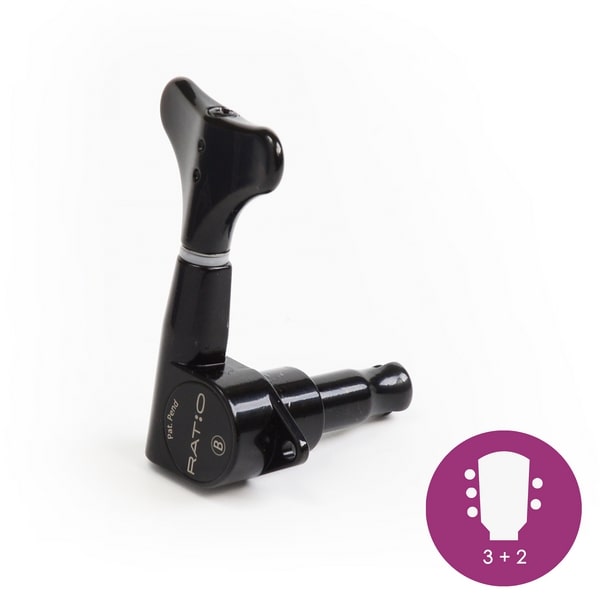

The PRB-5320 is a right-handed set of RATIO® Calibrated Machine Heads for BASS that use a 3 x 2 configuration.

Gear ratio: unique for each string position - one turn-one tone

Peg holes diameter required: 35/64" (14mm)

String post diameter: 0.547" (13.9mm)

String post length to string hole: 1.030” (26.1mm)

Weight per single machine head: 1.86oz (53g)

Weight per set of six: 9.3oz (265g)

String diameter up to 0.98 gauge (or larger if taper-wound)

Includes 5 machine heads, mounting screws, and bushings

About This Product

Description:

RATIO® patented gear technology. RATIO® - Calibrated Machine Heads incorporate different string gauges into the tuning equation. From Low B to G - 48:1, 36:1, 30:1, 20:1, 18:1. We balanced the gear ratios to each string simplifying the tuning process. With RATIO®, a half-turn is a semi-tone! Every string reacts the same to any tuning adjustment. Predictable, precise tuning, on every string. The PRB-5320 is a right-handed set of RATIO® Calibrated Machine Heads for BASS that use a 3 x 2 configuration. In order to achieve higher gear ratios, Ratio are the world's first machine heads using a double envelope gear design with a hardened steel gear. Amazingly smooth and super strong.
