Drum Kits:
40 Preset + Unlimited Number of user presets
More than 400 Instrument sounds
Efffects & Recording:
Pad compressor: full parametric 3-Band EQ for each individual pad
Output compressor & 4-Band fully parametric EQ for each output
12 different hall effects
9 different multi-effects
3D sonic image
Realtime .wav Recorder (44.1 kHz, 16 bit)
SoundStore via GEWA Electronics Cloud
Hardware:

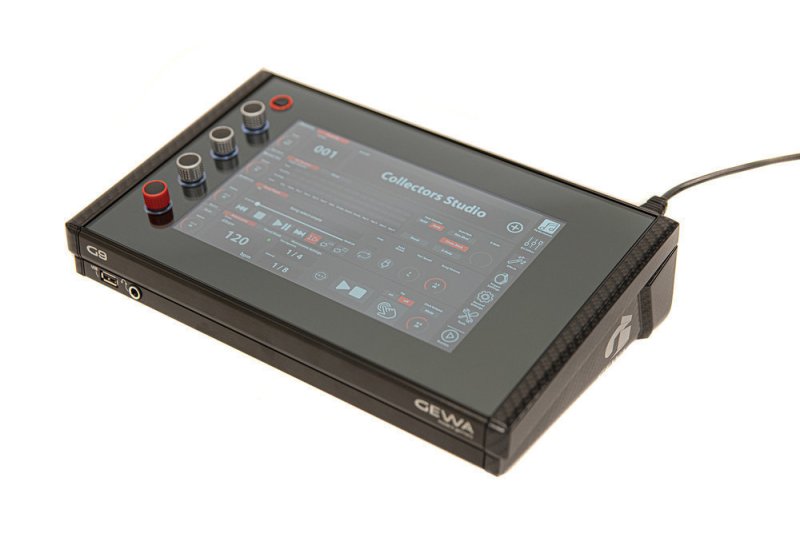

10" Direct Touch Interface (1280x800px TFT Display)
Multi-Chip Architecture
128 GB internal memory / 4 GB Flash memory
Optional Exteral USB Memory (Not included)
Bluetooth, Wi-Fi

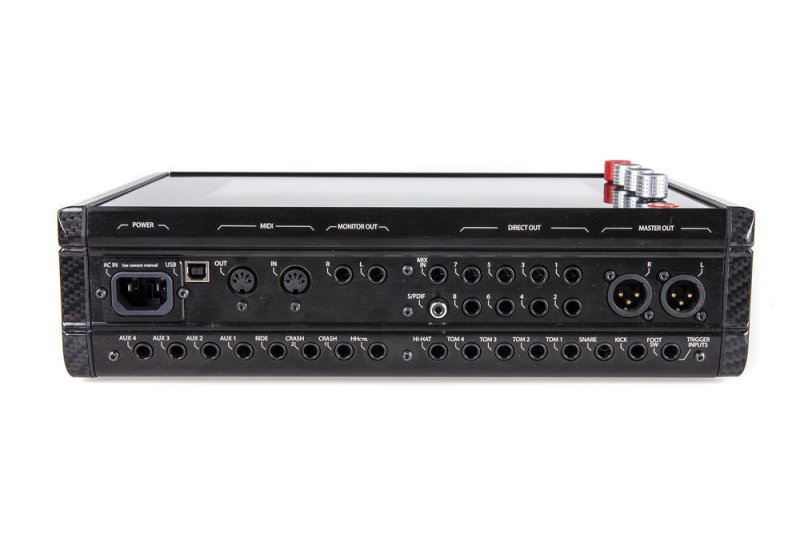

I/O:
Trigger Inputs: 14 x 6.3 mm (1/4") jack plugs
Monitor Out: 2 x 6.3 mm (1/4") jack plugs
Master Out: Balanced XLR
SPDIF (Stereo) 48 kHz
Direct Out: 8 x 6.3 mm (1/4") jack plugs
Headphone output: 6.3 mm (1/4") jack plug
Mix in: 6.3 mm (1/4") jack plug
MIDI (IN, OUT/THROUGH)-Outputs
USB Type-B (HIGH SPEED USB AUDIO/MIDI)
Footswitch: 1x jack (2 channel)
