Mini Guitar 108 Fuzz Effects Pedal

Name: Mini Guitar 108 Fuzz Effects Pedal
SKU: M296

Brand: Dunlop

Model: M296

UPC: 710137104181

Please log in to see your price

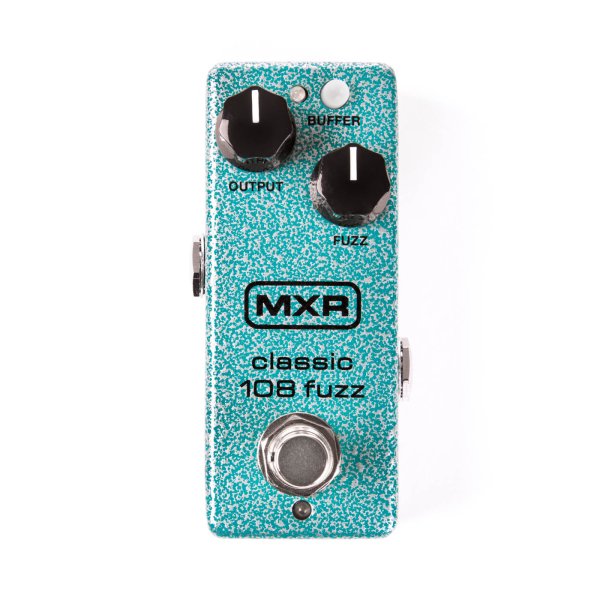

Now in an MXR mini housing, the Classic 108 Fuzz gives you all the same vintage fuzz tones in a much smaller footprint.

Input Impedance / Buffer Switch On: 800 kO

Output Impedance / Buffer Switch Off: 10 kO

Output Impedance @ 1 KHz, Maximum Volume: ~16 K ohm

Output Impedance @ 1 KHz, -6dB Volume: ~120 K ohm

Maximum Output Level: -4 dBV

Maximum Gain @ 1 KHz, Volume and Fuzz: Max 55 dB typ

Bypass: True Hardwire

Power Requirements: The MXR Classic 108 Fuzz is powered by the included Dunlop ECB003 9-volt adapter or the DC Brick and Iso-Brick power supplies.

About This Product

Description:

Now in an MXR mini housing, the Classic 108 Fuzz gives you all the same vintage fuzz tones in a much smaller footprint. Like its larger predecessor, it’s loaded with the silicon BC-108 transistor for a round and dirty crunch. This Classic 108 Fuzz also has the same no-nonsense control interface—just crank the Volume and Fuzz controls to your liking and start riffing. Use the Buffer switch on the side to make the fuzz play nice with wah pedals.
