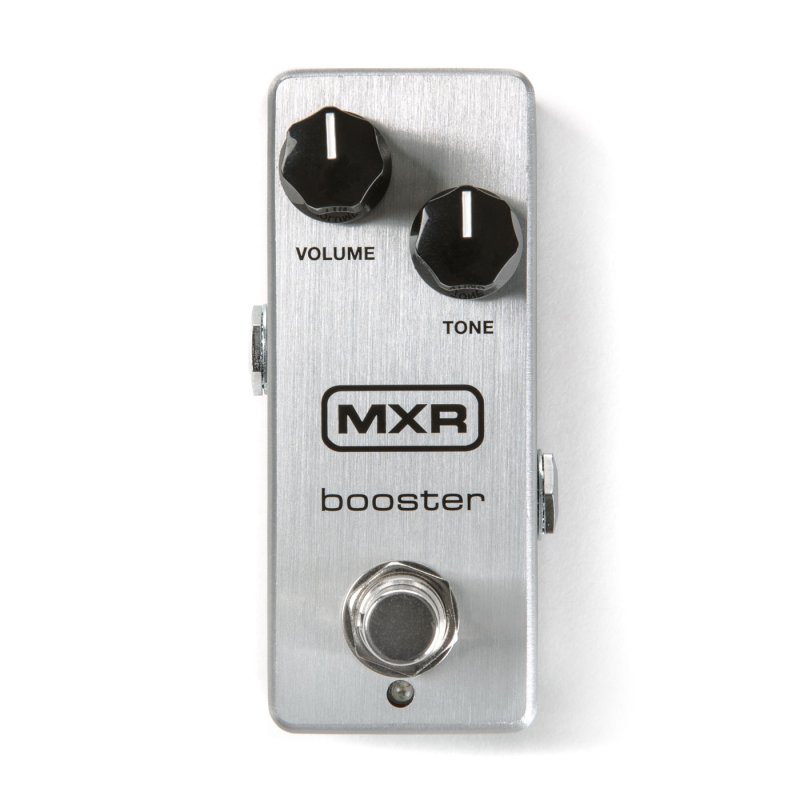

MXR Booster Mini Pedal

Name: MXR Booster Mini Pedal
SKU: JD-M293

Brand: Dunlop

Model: JD-M293

UPC: 710137101333

Please log in to see your price

The MXR Booster Mini gives you the sonic secret sauce of the Echoplex Preamp with the legendary boosting power of the MXR Micro Amp in a lightweight, space-saving mini housing.

Combines the Echoplex's front end with the Micro Amp's boost power

+26dB boost (variable) is perfect for breaking up amps and spotlighting solos

Tone control dials back or enhances your treble side

Great for tone stacking — run into your favorite fuzz or overdrive

Compact size fits any pedalboard

Internal trim pot to adjust the gain

Brushed metal enclosure offers a professional look

Input Impedance 800 kO

Output Impedance < 120 O

Max Input Level +6 dBV

Max Output Level +20 dBV

Noise Floor -82 dBV (+19.5 dB gain)

Power Requirements 12.5 mA @ 9VDC

9 x 4.1 x 5.6 cm

About This Product

Description:

The MXR Booster Mini gives you the sonic secret sauce of the Echoplex Preamp with the legendary boosting power of the MXR Micro Amp in a lightweight, space-saving mini housing. The Volume control has up to +25dB on tap while the Tone control rolls off highs. To add a little extra grit to your signal, adjust the internal Echoplex Preamp level control. Put the MXR Booster Mini on your board to save space, season up your tone, and fly high above the mix.
