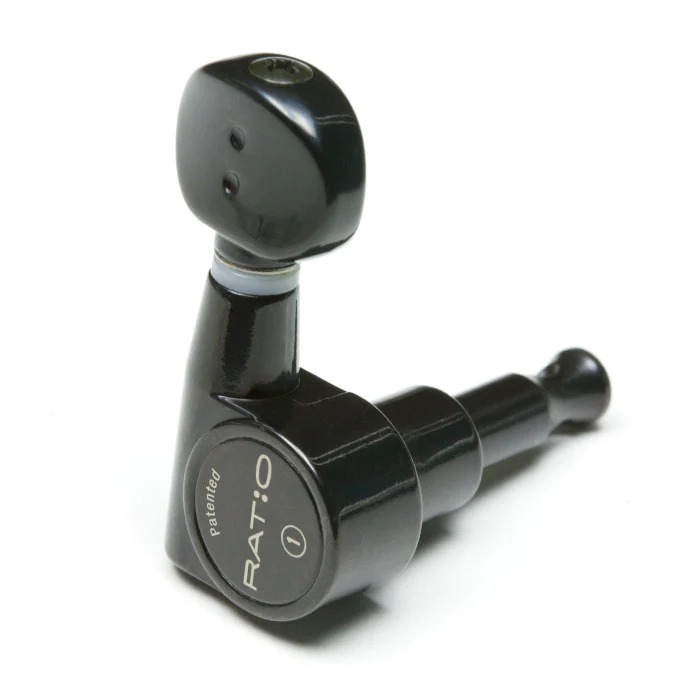

RATIO patented gear technology
RATIO - Calibrated Machine Heads incorporate different string gauges into the tuning equation
From Low E to High E 39:1, 24:1, 20:1, 35:1, 20:1, 12:1
We balanced the gear ratios to each string simplifying the tuning process
With RATIO®, a half turn is a semi-tone
Every string reacts the same to any tuning adjustment. Predictable, precise tuning, on every string
Gear ratio: unique for each string position - one turn-one tone
Peg holes diameter required: 13/32" (10mm)
String post diameter: 0.236" (6mm)
String post length to string hole: 0.890” (22.6mm)
Weight per single machine head: 0.066lbs (30g)
Weight per set of six: 0.393lbs (179g)
String diameter up to 72 gauge
Includes 6 machine heads, mounting screws and bushings
Includes complimentary 4 sets of aluminum mounting plates
