Ratio Locking Tuners Staggered 6 In Line 2 Pin, Chrome

Ratio Locking Tuners Staggered 6 In Line 2 Pin, Chrome

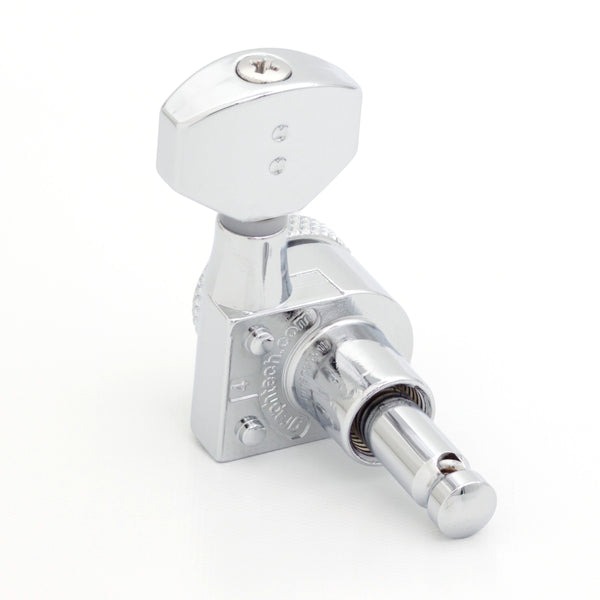

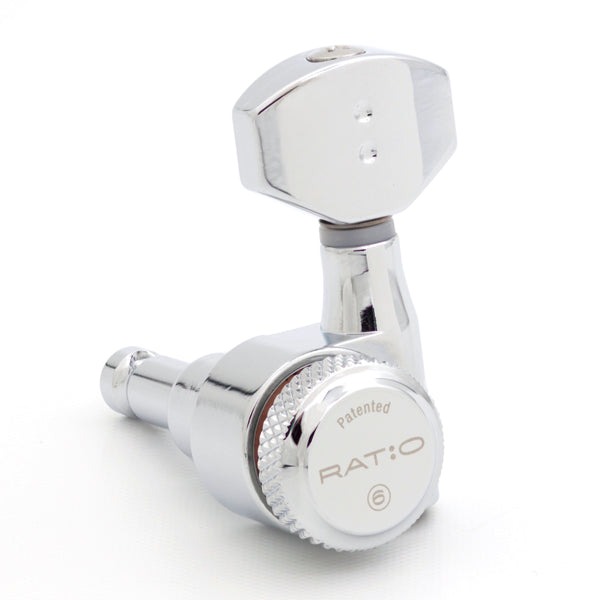

Name: Ratio Locking Tuners Staggered 6 In Line 2 Pin, Chrome
SKU: PRL-9721-LC0

Brand: Graph Tech Guitar

Model: PRL-9721-LC0

UPC: 702725248100

Please log in to see your price

Gear ratio: unique for each string position - one turn-one tone

Peg holes diameter required: 13/32" (10mm)

String post diameter: 0.236" (6mm)

String post length to string hole: 0.827” (21mm) - 0.787" (20mm) - 0.748" (19mm)

Weight per single machine head: 0.083lbs (38g)

Weight per set of six: 0.496lbs (225g)

String diameter up to 72 gauge

Includes 6 machine heads, mounting screws and bushings

Includes complimentary 4 sets of aluminum mounting plates

About This Product

Description:

The PRL-9721 and PRL-9731 are right-handed sets of Locking RATIO® Calibrated Machine Heads for electric guitars that use 6-in-line tuners with staggered posts (eliminates the need for a string tree). It has a two-pin casing that can be used as is, or with our Patented InvisoMatch Mounting Plates [opens in new tab]. 4 different sets of InvisoMatch mounting plates in brushed aluminum are included to make installation on most guitars fast and accurate by using your existing screw mounting holes.

Specifications
